Herder Mowing Bucket

Herder Mowing Bucket

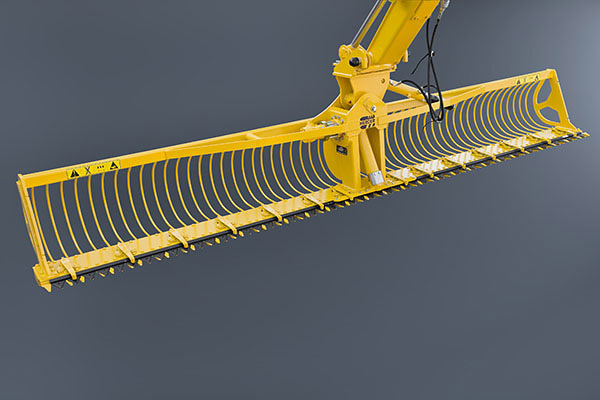

Everyone wants a good mowing result, but everyone also wants an outline of the costs. With its fifth generation 'MR' mowing buckets, Herder proves you can achieve both. Herder mowing buckets have been developed to perform to the full in all conditions. This starts with the well thought-out design of the mowing bucket and all of the moving parts. Moreover, exclusive use is made of high-quality materials which guarantee a long lifespan. A unique design, the application of the best materials in combination with quality workmanship gives an unequalled tool. A mowing bucket that performs everywhere and at all times.

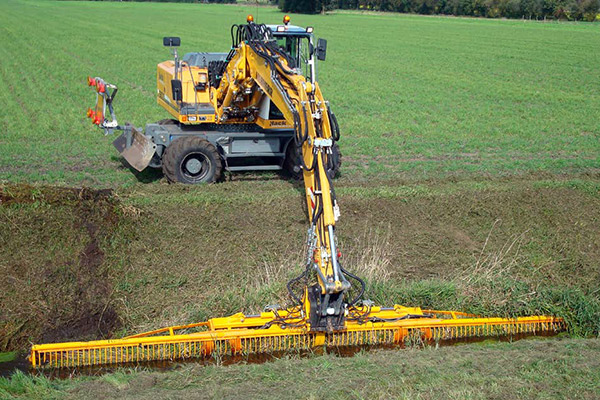

The MRL mowing bucket, a lighter mowing bucket model, is ideal for the Herder Grenadier and medium-sized excavators. The mowing bucket MRZ, the heavier version of the mowing bucket, is suitable for wheel and crawler excavators. You can also choose from different widths, from 2.50 to 5.50 meters. You can even reach widths of up to 8.60 meters by combining two mowing buckets. Furthermore, Herder has two ‘ultra light’ models in its range, with 2.00 and 2.50 meters working widths. These are ideal for a mini excavator in connection with the weight/stability. You simply achieve more with the Herder mowing bucket

SPECIFICATIONS
APPLICATION TYPE/WIDTH
IN CM
FRAME HEIGHT
IN CM
OIL CONSUMPTION
IN L/MIN
WEIGHT
IN KG
Mini Excavators up to 5 Tonnes MSFT 200.KB 40 approx. 22 approx. 190
MSFT 250.KB 40 approx. 22 approx. 215
Mini Excavators 5-8 Tonnes MSFT 300.KB 53 approx. 40 approx. 328
Tractors MRLT 250.KB 53 approx. 40 approx. 303
MRLT 430.KB 53 approx. 40 approx. 403
MRLT 550.KB 53 approx. 40 approx. 483
Excavators 8 – 17 Tonnes MRZT 250.KB 57 approx. 40 approx. 331
MRZT 300.KB 57 approx. 40 approx. 360
MRZT 430.KB 57 approx. 40 approx. 447
MRZT 550.KB 57 approx. 40 approx. 538
Excavators more than 16 Tonnes MRZZT 430.KB 57 approx. 40 approx.
MRZZT 550.KB 57 approx. 40 approx.
Maximum allowable oil pressure: 170 bar
